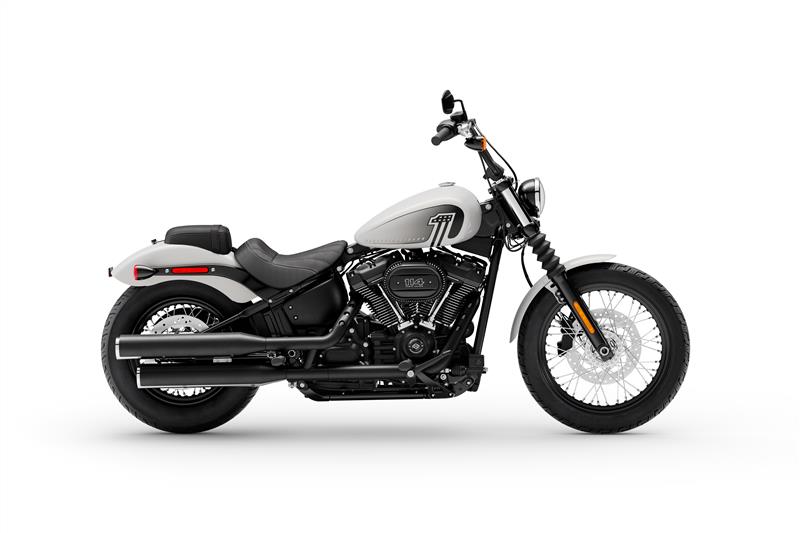

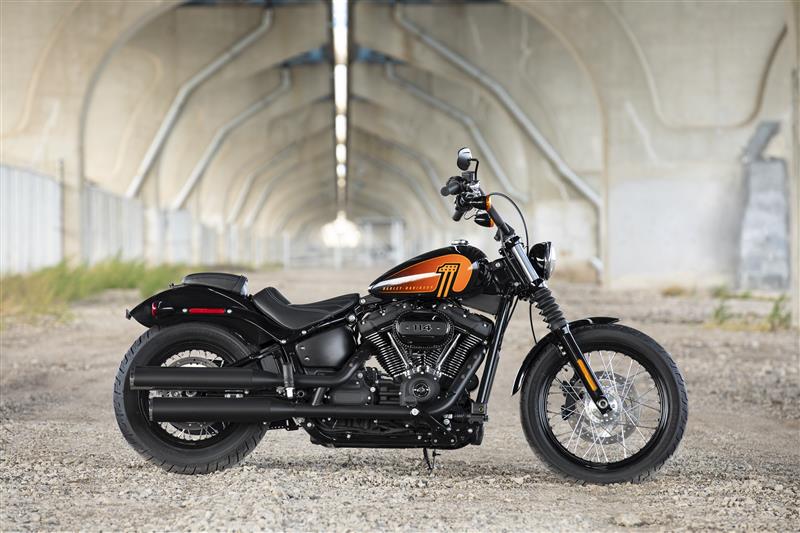

2021 Harley-Davidson Cruiser Street Bob 114
2021 Harley-Davidson FXBBS Street Bob 114
A gritty, stripped-down bobber cloaked in black.
- A perfect performance base for customization
- Milwaukee-Eight® 114 engine, the most powerful option for a Softail®
- 2-up seating, black steel laced wheels, dark finishes
Engine
- Displacement:114 cu in (1,868 cc)
- Compression Ratio:10.5:1
- Engine:Milwaukee-Eight® 114
- Bore:4.016 in.
- Stroke:4.5 in.
- Fuel system:Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:2-into-2 offset shotgun; catalyst in muffler
Dimensions
- Fuel Capacity:3.5 gal.
- Length:91.3 in.
- Wheelbase:64.2 in.
- Ground Clearance:4.9 in.
- Tires, Front Model:100/90B19,57H,BW
- Tires, Rear Model:150/80B16,77H,BW
- Rake:30
- Seat Height, Laden:25.8 in.
- Trail:6.2 in.
- Oil Capacity (w/ Filter):5 qt.
- Weight, as shipped:634 lb.
- Weight, in running order:659 lb.
Other
- MfrModelID:FXBBS
- Family Name:Cruiser
- Manufacturer Type:Cruiser
- :Optional
- Primary Color:BajaOrange
- Engine Torque Testing Method:J1349
- Engine Torque:119 ft-lb
- Engine Torque (RPM):3000
- Lean Angle, Right (Deg.):28.5
- Lean Angle, Left (Deg.):28.5
- Fuel Economy Testing Method:Estimated City/Hwy
- Fuel Economy:47 mpg
- Wheels, Front Type:Gloss Black, Steel Laced
- Wheels, Rear Type:Gloss Black, Steel Laced
- Brakes, Caliper Type:4-piston fixed front and 2-piston floating rear
- Lights (as per country regulation), indicator lamps:High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS (if equipped), security, low battery voltage, low fuel
- Gauges:2.14 inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
- Gear Ratios (Overall) 1st:9.311
- Gear Ratios (Overall) 2nd:6.454
- Gear Ratios (Overall) 3rd:4.793
- Gear Ratios (Overall) 5th:3.882
- Gear Ratios (Overall) 6th:3.307
- Gear Ratios (overall) 4th:2.79
- Primary Drive:Chain, 34/46 ratio
