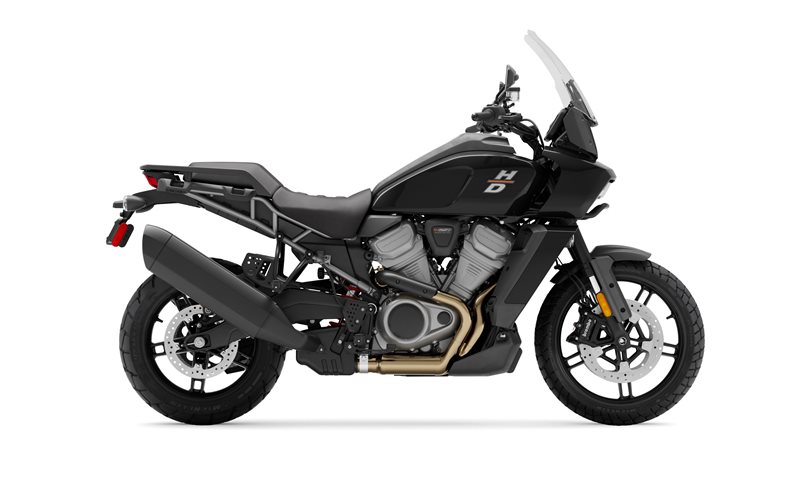

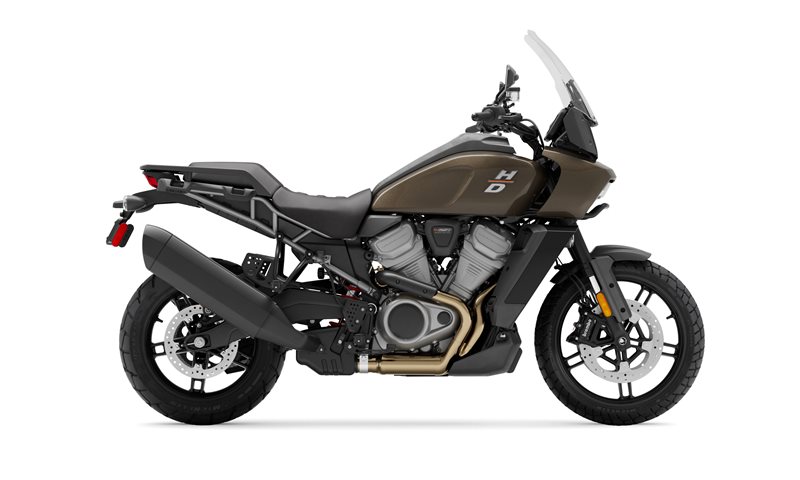

2021 Harley-Davidson Adventure Touring Pan America 1250
Description
Pan America™ 1250 motorcycle is a two-wheel multi-tool built to endure, designed to explore, and engineered for adventure.
DIFFERENT BY DESIGN
H-D design and engineering teams have crafted a vision guided by utility, rooted in the spirit of iconic American off-road vehicles. In a landscape of bikes that are achieving uniformity, Pan America is a rugged take where function feeds form in a package that is uniquely Harley-Davidson.
All Terrain Long Hauler
Informed by H-D’s touring legacy, Pan America™ is designed to maintain high-speed ride and handling performance even when at the limit of its luggage and weight capacity. Refined, capable and intuitive, Pan America™ is a motorcycle that stays composed and confident no matter how hard you push it.
Engine
- Displacement:76.3 cu in (1,252 cc)
- Compression Ratio:13.0:1
- Engine:Revolution® Max 1250
- Bore:4.13 in. (105 mm)
- Stroke:2.84 in. (72 mm)
- Fuel system:Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:2-into-1-into-1; catalyst in header
Dimensions
- Fuel Capacity:5.6 gal. (21.2 l)
- Wheelbase:6.2 in. (157 mm)
- Ground Clearance:34.2 in. (869 mm)
- Rake:8.3 in. (210 mm)
- Seat Height, Laden:31.8 in. (807 mm)
- Trail:25
- Weight, as shipped:503 lb. (228 kg)
- Weight, in running order:534 lb. (242 kg)
- Tire, Type:170/60R17 72V
- Oil Capacity (w/filter):4.75 qt. (4.5 l)
- Tires, Front Specification:62.2 in. (1,580 mm)
- Tires, Rear Specification:120/70R19 60V
Other
- :
- Family Name:Adventure Touring
- Manufacturer Type:Adventure Touring
- :Optional
- Primary Color:Standard
- Horsepower:150
- Engine Torque Testing Method:J1349
- Engine Torque:94 ft-lb (127 Nm)
- Engine Torque (RPM):6,750
- Lean Angle, Right (Deg.):42
- Lean Angle, Left (Deg.):42
- Fuel Economy Testing Method:Estimated City/Hwy
- Fuel Economy:48 mpg (4.9 l/100 km)
- Text-to-Speech (TTS) Languages:Phone dependent
- Hands-free Mobile Phone - via Bluetooth:Yes
- Voice Recognition Languages: Phone functions only:Phone dependent
- Voice Recognition Languages: Tuner/Media/Navigation:Phone dependent
- Rider/Passenger Intercom:Headset function only
- Vehicle Information Screen (Air temperature, oil pressure and EITMS):Engine temp, Battery Voltage
- USB:Charging and Instrument update, USB-C, 5V, 3A
- Bluetooth:Yes
- Languages:Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal/Brazil), Indonesian, Russian, Slovak, Spanish (Mexico/Spain), Swedish, Turkish, Vietnamese, Thai
- Headset Specifications (if equipped):Bluetooth
- Wheels, Front Type:Aluminum cast, satin black
- Wheels, Rear Type:Aluminum cast, satin black
- Brakes, Caliper Type:Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
- Lights (as per country regulation), indicator lamps:LED Bullet Turn Signals
- Gauges:6.8 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, music, navigation (H-D App ONLY)
- Gear Ratios (Overall) 1st:13.11
- Gear Ratios (Overall) 2nd:9.687
- Gear Ratios (Overall) 3rd:7.509
- Gear Ratios (Overall) 5th:5.08
- Gear Ratios (Overall) 6th:4.436
- Gear Ratios (overall) 4th:6.057
- Primary Drive:Gear, 49/89 ratio
- Type:Color TFT w/ Touch
